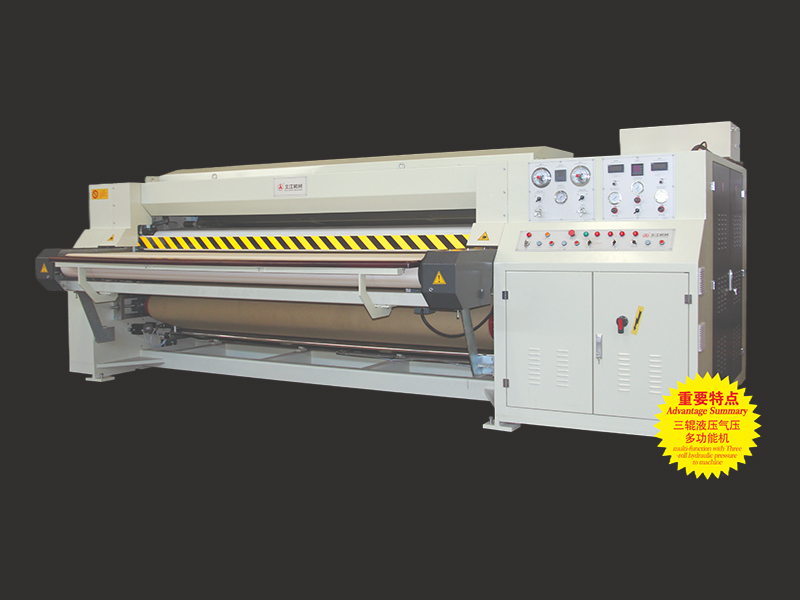

GYPG-X150/180/250/320熨平机

重要特点：(Advantage Summary)

三辊液压气压多功能机multi-function with Three-roll hydraulic pressure to machine

适用范围 Sphere Of Application

适用于服装、鞋面、箱包、沙发、PU等革皮的，底层、中层、顶层熨平烫光工艺需要。.

Applicable needs to top smelting process to clothing, vamps, bags, sofas, the bottom and middle to

PU leather.

毛毡带除尘装置Felt belt device with dust removal（加照片）

加结构照片 Structure photo

主要技术参数：(Main Technical Parameters)

三、主要特点：Introduction to main features

1、 本机整体设计精湛，集吸收国外技术结合国内熨平工艺需要为基础，以达到工艺要求的同时，对皮革损伤小及粒面平细为主导思路。

.

1.The overall design to machine is exquisite, and it is based to absorb foreign technology combined with the domestic ironing process. and achieving the process requirements, with leading idea to leather damage is small and grain surface

2、 本机具有一机多功能，设有三个压力辊，两根大压力辊，一根小压力辊，大压力辊有液压和气压两种工作方式，用液压时小压力辊（气压）可增加熨平的压力点，同时两根大压力辊可独立控制压力，适应皮革风格要求范围广，

         整合了皮革熨平风格光泽均匀与平细的最佳平衡点；

         2, This machine is multi-function, having three pressure rollers, two large pressure rollers, one small pressure roller, large pressure roller have working way is hydraulic and pneumatic, and small pressure roller (air pressure) with hydraulic pressure. Increase the pressure point of the ironing, and the two large pressure rollers can control the pressure independently, adapting to a wide range requirement to leather style, The perfect balance to leather to screed style, uniformity and flatness..
.

3、 关键熨平光辊：采用特殊内部结构和特殊镀铬材料，辊筒表面温差小，温差控制在2度左右，熨平过程中使皮革粒面层成膜性好，具有色泽鲜艳、亮度好、光泽度一致性好等特点；

3, the key ironing roller: using a special internal structure and special chrome-plated materials, the surface to roller is small temperature difference

, the temperature difference is control about 2 degrees, during the ironing process to make the leather grain layer performance great, characteristics to product is  bright color, brightness, gloss consistency and so on

4、 关键件-毛毡套：采用进口原料和先进工艺制作而成，具有表面平整、弹性好、密度大、防静电、无毡印等特点；

4, key part- felt cover: finished with raw material to imported and advanced technology, it has the characteristics to flat surface, good elasticity, high density, anti-static, no felting, etc

;

5、 加热系统：采用油电热油循环加热方式，具有加热均匀、热容量高、加热温度高、安装方便等特点；

5, heating system: adopting method is oil-electric heat oil cycle, with uniform heating, high heat capacity, high heating temperature, convenient installation and so on;

6、 调偏系统：本机设有毛毡带自动调偏装置，采用气动实时调偏方式，使用更方便，更省时，更省心

6, correction system: This machine is equipped with automatic correction device to felt belt, using method is pneumatic real-time correction, more convenient to use, more save time, more economical

7、 送皮装置：通过吸收国外先进结构，结合皮革工艺要求，改进了设计思路，使之具有更好的自动伸展功能，从而减少了皮革的褶皱，操作更便捷

7，Leather delivery device: By absorbing advanced technology from foreign and combining leather craftsmanship to improve to make it have a better automatic stretching performance, thereby reducing the wrinkles of the leather and making the operation more convenient

8、 安全装置：按照欧洲安全标准设计，采用进口安全气囊开关，并设有多层安全互锁装置，当发生危险时，触动安全气囊条或急停按钮，机器会自动停车，并自动降压，保障了操作工的人身安全；

8，Safety devices: according to European safety standards to design, adopted imported airbag switch and has multi-layer safety interlock device. When the danger occurs, the airbag strip or emergency button to stop is touched, the machine will stop automatically and reduce pressure, which ensures safety to operator

二、重要特点：(Advantage Summary)

三辊液压气压多功能机

multi-function with Three-roll hydraulic pressure to machine

三、主要特点：(Working Characteristics)

1、 本机整体设计精湛，集吸收国外技术结合国内熨平工艺需要为基础，以达到工艺要求的同时，对皮革损伤小及粒面平细为主导思路。

2、 The overall design to machine is exquisite, and it is based to absorb foreign technology combined with the domestic ironing process. and achieving the process requirements, with leading idea to leather damage is small and grain surface.

3、 本机具有一机多功能，设有三个压力辊，两根大压力辊，一根小压力辊，大压力辊有液压和气压两种工作方式，用液压时小压力辊（气压）可增加熨平的压力点，同时两根大压力辊可独立控制压力，适应皮革风格要求范围广，

         整合了皮革熨平风格光泽、均匀与平细的最佳平衡点；

2.This machine is multi-function, having three pressure rollers, two large pressure rollers, one small pressure roller, large pressure roller have working way is hydraulic and pneumatic, and small pressure roller (air pressure) with hydraulic pressure. Increase the pressure point of the ironing, and the two large pressure rollers can control the pressure independently, adapting to a wide range requirement to leather style, The perfect balance to leather to screed style, uniformity and flatness.

4、 关键熨平光辊：采用先进技术和特殊镀铬材料，熨平过程中使皮革粒面层成膜性好，具有色泽鲜艳、亮度好、光泽保持时间长等特点；

3，The ironing roller as key part:
Adopted advanced technology and special chrome plating materials, layer to the leather surface is well formed during the ironing process, with featuring bright color, good brightness and long gloss retention

关键件毛毡套：采用进口原料和先进工艺制作而成，具有表面平整、弹性好、密度大、防静电、无毡印等特点；

4，The felt as key part: Finished with imported raw materials and advanced technology, it has the characteristics to flat surface, good elasticity, high density, anti-static, no felting, etc.

5、 加热系统：采用油电热油循环加热方式，具有加热均匀、热容量高、加热温度高、安装方便等特点；

Heating System:  adopts way to heating is oil electric heating oil circulation, which has the characteristics to uniform heating, high heat capacity, high heating temperature and convenient installation.

6、 调偏系统：本机设有毛毡带、输送带自动调偏装置，采用气动实时调偏方式，使用更方便，更省心；

7、 This machine havs automatic adjustment device to felt belt and conveyor belt. It adopts way to adjust is pneumatic real-time, which is more convenient and worry-free.

8、 送皮装置：通过吸收国外先进结构，结合皮革工艺要求，改进了设计思路，使之具有更好的自动伸展功能，从而减少了皮革的褶皱，操作更便捷.

Leather Transmission device:
By absorbing dvanced technology from foreign and combining requirement to leather craft, the idea to design has been improved to make it have a better automatic stretching function, thereby reducing the wrinkles to leather and operation is more convenient.

安全装置：按照欧洲安全标准设计，采用进口安全气囊开关，并设有多层安全互锁装置，当发生危险时，触动安全气囊条或急停按钮，机器会自动停车，并自动降压，保障了操作工的人身安全；

Safety devices: according to European safety standards to design, adopted imported airbag switch and has multi-layer safety interlock device. When the danger occurs, the airbag strip or emergency button to stop is touched, the machine will automatically stop and reduce pressure, which ensures safety to operator.

四、适用范围(Sphere Of Application )

        适用于服装、鞋面、箱包、沙发、PU等革皮的，底层、中层、顶层熨平烫光工艺需要。

Applicable needs to top smelting process to clothing, vamps, bags, sofas, the bottom and middle to

PU leather.
